Hardware support

All about the hardware supported by XCP-ng

XCP-ng comes with a large range of hardware support.

A given device may be supported at one of two levels:

  1. Presence on the Hardware Compatibility List guarantees support by XCP-ng. With some exceptions described in the next section.
  2. Many devices outside the HCL are also supported, but are not tested routinely. See Supported hardware outside the HCL.

📖 Hardware Compatibility List (HCL)​

XCP-ng 8.3 shares a compatibility list with XenServer 8.4. Thus, devices listed on XenServer's Hardware Compatibility List are supported, with rare exceptions.

Exceptions include devices which require proprietary software components to operate (closed source drivers, for example). Such devices do not impede the use of XCP-ng, but their features cannot be exploited.

♻️ Supported hardware outside the HCL​

Many devices outside the HCL actually work perfectly with XCP-ng. Contrarily to some hypervisors, XCP-ng does not demand the use of servers from a curated short list. Most of the hardware support depends on the Linux kernel drivers plus vendor drivers covering a very large range of devices.

What being absent from the HCL actually means is that we do not perform systematic tests on it, so we cannot offer the same level of guarantee as that offered for devices in the HCL. However, our large user community runs XCP-ng on a hardware range far beyond that of the official HCL, and we support them.

Concretely, if your hardware is not on the HCL, there's still a very high chance that you can use XCP-ng and benefit from professionnal support from Vates. And even if your testing uncovers an issue, don't give up immediately: we're willing to fix them, HCL or not.

Let's mention one particular kind of exceptions to support, though. Security on older hardware having hardware vulnerabilities. Older hardware, while usually still running very well - and we're all for using existing hardware while it lasts rather than buying new machines - may not receive hardware-related security updates from their very vendor. In particular those related to side-channel attacks (Spectre, Meltdown, and everything that ensued). In this case, you can use XCP-ng, but without expecting protection against this kind of vulnerablity, because it simply doesn't depend on XCP-ng (or any other hypervisor): it depends on the hardware vendor.

🧰 Alternate drivers​

XCP-ng occasionally provides alternate drivers for users who have issues with the main drivers installed with XCP-ng.

Those driver packages can be installed alongside the main packages and will take precedence gracefully.

Note: there is another way, albeit more experimental, to use alternate drivers: use our experimental alternate kernel (see dedicated section below).

In this section we provide instructions that are common to all the provided drivers.

Just replace package-name with the actual package name.

Installation​

yum install package-name

Activation​

The simplest way is to reboot.

Else, if you know the module name, you can unload it from the kernel and reload it.

modprobe -r module-name
modprobe -v module-name

Uninstallation​

If the driver does not work as intended, just remove the package from the system and follow the "Activation" steps above.

yum remove package-name

Updates​

The alternate drivers may get updated to newer versions when the system is updated or upgraded. If that causes regressions, please open a bug report.

System Upgrades​

Upgrades using the installation ISO will not retain the alternate driver package, so remember to re-install it after the upgrade if it's still needed (the main driver may have been updated too and make the alternate driver useless in your case).

Upgrades using the yum method will retain the alternate driver package, unless we stop providing it (usually, because the main driver will have been updated too). If the alternate driver is retained, it may have changed versions, so you may still need to consider going back to the main driver. If after an upgrade no driver works correctly for your system anymore, open a bug report.

Network drivers list​

A list is maintained at https://github.com/xcp-ng/xcp/wiki/Drivers

Check the "XCP-ng X.Y alternate driver" column, which provides packages names and versions for every available alternate driver.

🎁 Additional kernel modules​

Additional kernel modules are a lot like alternate drivers (most of the above section applies to them) except that they don't replace an existing driver from the system. They add a new one that didn't exist at all.

Their list is maintained at https://github.com/xcp-ng/xcp/wiki/Drivers, in a table named "Other kernel modules available in XCP-ng X.Y".

🚒 Alternate kernel​

We provide an "alternate Linux kernel" on XCP-ng 8.0 and above, named kernel-alt. It is kernel 4.19, as the main kernel, but with all updates from the Linux 4.19 branch applied. By construction, it should thus be stable. However it receives less testing so we cannot fully guarantee against regressions (any detected regression we'd work on a fix quickly, of course). We also backport security fixes from the main kernel to the alternate kernel when needed.

This kernel is mainly targeted at:

  • Testing whether kernel.org fixes situations where the main kernel and drivers have issues on specific hardware.
  • Allowing a system to work temporarily when the main kernel has an issue regarding your specific hardware, until we can fix the main kernel. For this to happen, you need to tell us if you are in a situation where the main kernel doesn't work whereas the alternate kernel does!

Report issues here.

During system installation​

  • In BIOS mode, press F2 at early boot stage when offered the choice then type install-alt.
  • In UEFI mode, select the boot option mentioning the alternate kernel from the grub menu.

This will boot the installer with the alternate kernel and also install the alternate kernel on the system in addition to the main one (but will not make the alternate kernel the default boot option for the installed system).

Installation on an existing system​

You can install it using

yum install kernel-alt

This will install the kernel and add a grub boot menu entry to boot from it. It will not default to it unless you change the default in grub.cfg (/boot/grub/grub.cfg or /boot/efi/EFI/xenserver/grub.cfg depending on whether you are in BIOS mode or UEFI mode).

There may also be a newer release of kernel-alt in testing repositories:

yum install kernel-alt --enablerepo=xcp-ng-testing

Uninstall​

Boot the main kernel, then:

yum remove kernel-alt

This will remove the added grub entry automatically too and set default boot to main kernel if needed.

Below is a non-exhaustive list of server models or devices for which the XCP-ng community provided extra tips.

This list is incomplete. A lot more can be found on our forum.

Supermicro / AMD EPYC CPU​

Reference: https://xcp-ng.org/forum/topic/350/amd-epyc-compatible

EPYC CPUs are working well on XCP-ng, but people with SuperMicro motherboard saw random reboot sometimes. Turning off the C-state control solved the issue:

In BIOS:

  • Advanced -> CPU Configuration -> Global C-state Control: Disabled
  • Advanced -> North Bridge -> Determinism Slider: Performance

Network Cards​

Emulex Corporation OneConnect NIC (Skyhawk) (rev 10) - 10Gbps NIC "OCe14102-NT"​

Current State: Works, but sporadic card/port lockups - avoid in production!

Known to work (relatively stable) with latest Firmware 11.2.1153.23 on XCP-ng 7.5

Known Issues (with old firmware; also on XenServer 7.2 with current firmware)

  • Card Lockup
    • pulling the network cable puts the card in a locked state, LED's keeps flashing; putting the cable back does nothing; network connection stays lost
    • Solutions
      • Short Term: power off the host and pull power cords (the card needs to be completely powerless!, just switching the host OFF is not enough)
      • Mid Term: Upgrade Firmware to match XCP-ng Driver version (for XCP-ng 7.5 -> 11.2.XXXXX)
      • Long Term: Avoid Emulex cards!

Broadcom Netxtreme II BCM57711E​

(or BCM5709 or ...)

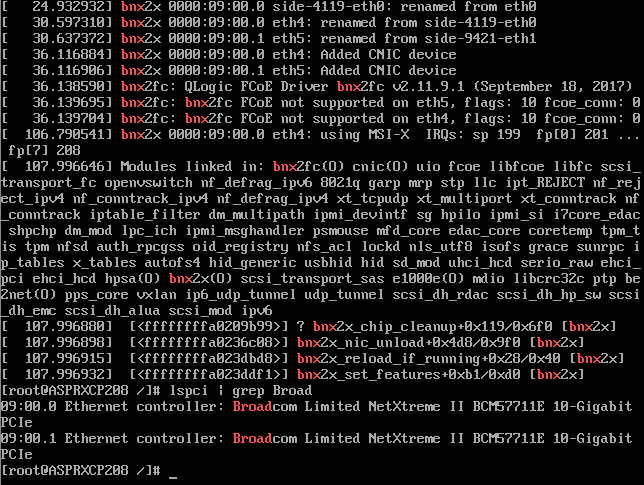

On XCP-ng <= 8.0, using default bnx2x driver triggers a kernel Oops on XCP-ng (no ping and freezing the host):

Kernel boot logs showing the bnx2x driver creating an Oops in the kernel.

Fixed drivers have been released as official updates.

Marvell/Aquantia AQC111U​

There are several USB 5Gbps NICs based on this chipset available on the market. A dedicated kernel module driver is available to add support to XCP-ng for (supposedly) all NICs based on Marvell (originally Aquantia) AQC111U over USB3. The driver should not be confused with the generic AQC111 that supports the whole family of NICs based on the AQC111 chipset, but NOT the ones connected over USB3. The kernel module provides support only for AQC111U-based NICs.

The kernel module is just a repackage for XCP-ng of the AQC111U drivers available for Linux Kernel 3.10 on the Marvell website.

To install the driver follow the instructions provided in the Alternate drivers section below and use aqc111u-module as package-name (module-name would be aqc111u).

Known compatible NICs are 1:

BrandModelTested
QNAPQNA-UC5G1T✅
SabrentNT-SS5G✅
StarTechUS5GA30
StarTechUS5GC30
TrendnetTUC-ET5G

Despite the AQC111U-based adapters support the IEEE 802.3bz standard (AKA 5BASE-T) and will correctly negotiate with compatible peripherals the communication at 5Gbps, the actual bandwidth will not exceed 3.5Gbps due to the overhead of the incapsulation of the ethernet protocol over the 5Gbps connection via USB 3.0 (AKA USB 3.1 Gen 1).

Footnotes​

  1. There might be other NICs compatible as long as they are based on the Marvell AQC111U chip. ↩
